MOBILE MONITOR

The Standard Mobile Monitor (SMM) functions as a complementary device for non-HMD applications. This technology is a must have on missions due to its ability to convey critical data. This device can be used as an alternative to the Tac-Eye 2.0 for those who do not wish to have a helmet mounted device. This low cost monitor is semi-rugged but has an optional kit available for purchase that upgrades the monitor to achieve optimal ruggedization.

The SMM is designed specifically for use in ISR markets, in which Six15 is already well-known for the production of their Tac-Eye 2.0 HMDs. The Tac-Eye was originally developed as part of the BAO HMD program and is popular worldwide within the ISR community with Six15 making regular deliveries to L3, Coastal, and Harris. The SMM comes with custom adapters and will be compatible with all of the same products as the Tac-Eye, such as L-3’s SIR, Coastal’s MVR VI, and Harris’ 7800t.

The Standard Mobile Monitor has an optional ruggedization kit available that upgrades the system to achieve maximum durability. This kit makes the system battlefield ready through a wraparound bumper that provides shock and drop resistance while maintaining the compact size of the SMM. Additional security is provided through a single cable solution which delivers an IP67 seal over the standard connectors. This single cable solution terminates in the Tac-Eye standard Glenair 13 Pin Connector. A rugged adapter for connection to an L-3 SIR device is also included.

Part Number: 404T10091





mobile monitor SPECIFICATIONS

Device Size/Weight: 6.3” x 3.6” x 0.75”, < 1lb
Display Size/Resolution: 5” diagonal, 640 x 480
Display/Backlight Type: AMLCD panel w/ LED edge backlight
Viewing Angle: > 50 degrees, all directions
Brightness: 500 cd/m2
Contrast Ratio: 600:1
Display Inputs: NTSC, RS-170, PAL
Ingress Protection: IP-54
Temperature Range: -25C to +70C
Optional Keypad Functions: Power, Brightness Up/Down
Optional Sealing Kit (to IP67): Includes sealed connector/ cable assembly and display window protection
Optional Sealed Assembly: Rugged Kit pre-installed at factory, providing cost savings over independent purchase


Accessory - RUGGEDIZATION KIT

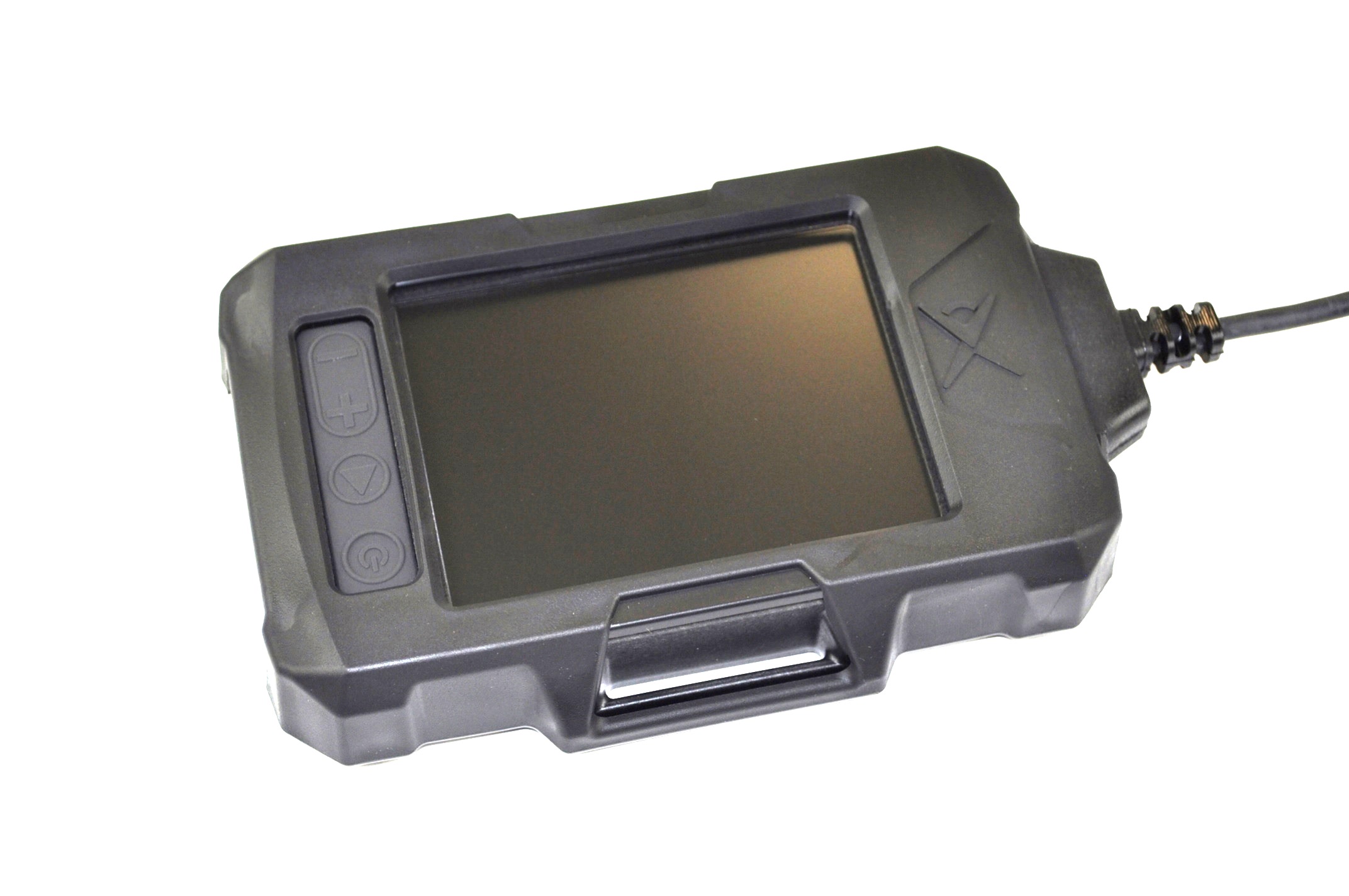

This kit makes the mobile monitor battlefield ready through a wraparound bumper that provides shock and drop resistance while maintaining the compact size of the SMM. The bumpers are easy to apply and once in place the overall dimensions of the display are 4.25”W, 6” L, and 1” H. Additional security is provided through a single cable solution which delivers an IP67 seal over the standard connectors. This single cable solution terminates in the Tac-Eye standard Glenair 13 Pin Connector. A rugged adapter for connection to an L-3 SIR device is also included.
