ODIN

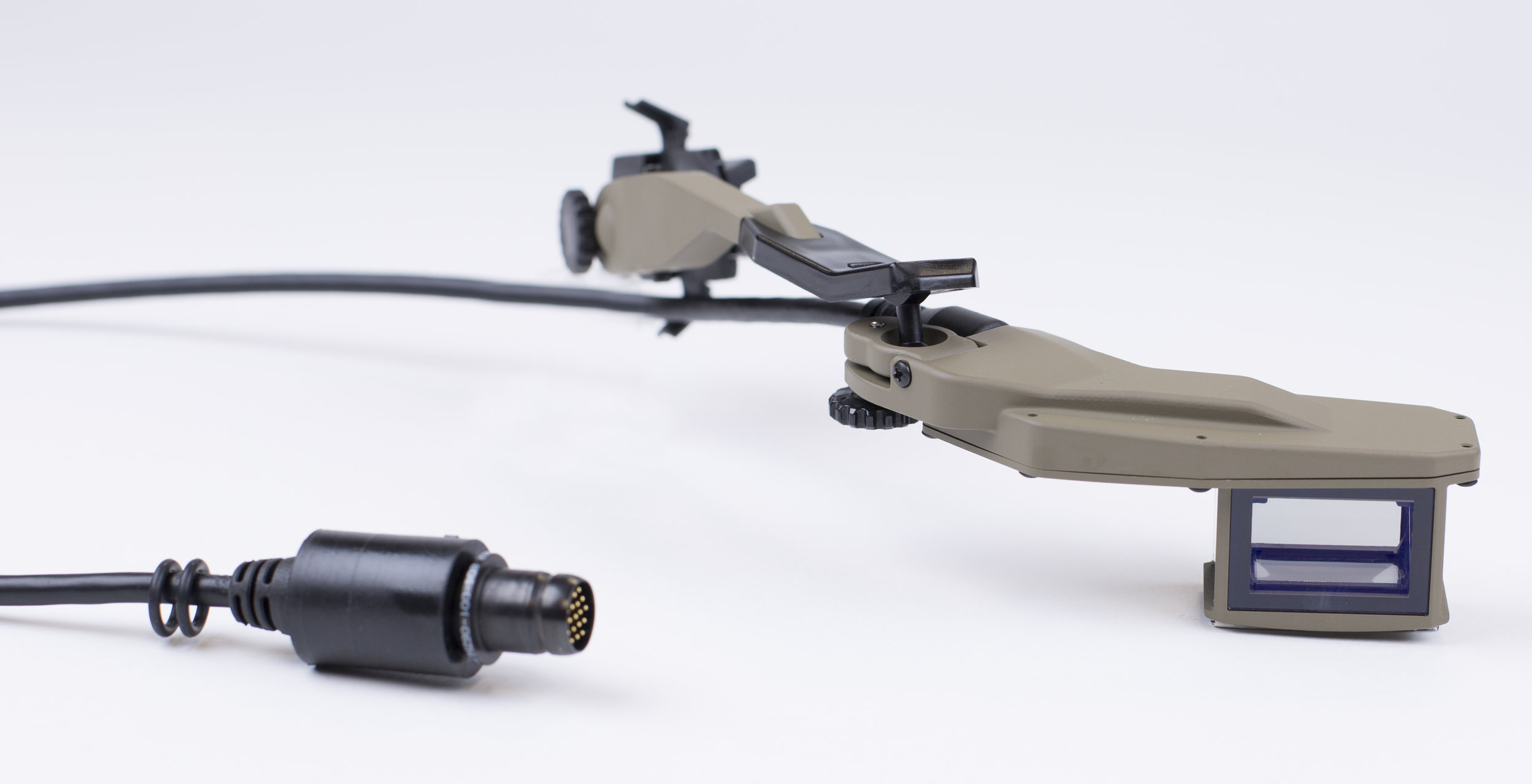

Odin is a see through display technology that enables augmented reality. This patented optical see through system allows the user to simultaneously view the real world and relevant computer generated information such as graphics, maps, and alerts without ever having to compromise situational awareness.

This technology can be used in a variety of applications such as industrial, medical, commercial, and defense to provide users with a cost effective solution. It is also beneficial by promoting safety and efficiency. Using hands-free technology coupled with this see through display has endless possibilities for real-time applications.





ODIN SPECIFICATIONS

Display Type: AMOLED
Resolution: 800 x 600 Pixels (full color, RGB)
Field of View: 45° Diagonal
Head-Borne Weight: < 50 grams / < 1.75 ounces
Eyepiece Size: 40 x 40 x 17 (x, y, z, in mm)
Eye Box: 5.6 x 4 x 8 (x, y, in mm)
Eye Relief: 8 MM
Gray Levels: Up to 256 per primary color
Brightness: <0.1 ftL. to >23 ftL.

Luminance Range: 9 FL to 18 FL
Contrast Ratio: >200:1 (color), >800:1 (monochrome)
Display Inputs: VGA (640×480), SVGA (800×600), NTSC,RS-170, PA
Power Consumption: < 1.0W (VGA modes);
<1.5W (Composite modes)
Readiness: Usable image within 3 seconds
Operating Temperatures: -31°C to +49°C
Storage Temperatures: -51°C to +71°C
Ingress Protection: IP-67
